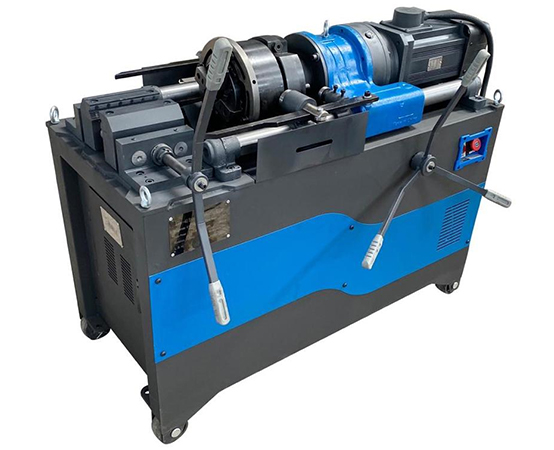

Bar Threading Machine
| Threading Diameter: | 16 - 40 mm |
| Roller Sets: | 1 set roller is 16-22 mm (79 x 2.5mm for 16-22mm Bar)2 sets roller is 25-32mm (71 x 3.0mm for 25-32mm Bar) |
| Threading Length: | 80-120mm max. |
| Thread Pitch: | 2.5/3.0mm |
| Thread Angle: | 60 Degree/75 Degree |
| Speed: | 62-80 r/min |
| Motor Power: | 5.5Kw (7.5Hp) |
| Voltage Phase: | 415 V (3 Phase) 50Hz |
| Motor: | Copper Winding Motor |
| Reduction Gear box: | Yes |
| Weight: | 450 kg |
| Machine Size: | 1.34 x 0.6 x 1.02 m |
