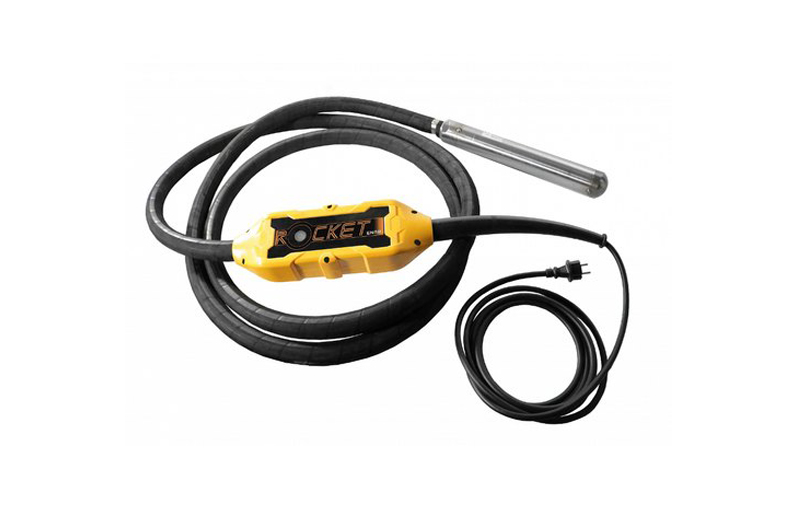

What is the High Frequency Concrete Vibrator Rocket?

The High Frequency Concrete Vibrator Rocket is a compact immersion concrete vibrator with an integrated transducer designed for efficient concrete compaction. It connects to an electronic converter and provides high frequency vibration without needing a separate generator.

What are the specifications of the Rocket vibrator?

The Rocket vibrator operates on 230V power supply with a frequency of around 200 Hz. It weighs approximately 3.4 kg and is available with vibrator head diameters such as 38 mm, 50 mm, and 58 mm with a standard hose length of about 5 meters.

What protection features does the Rocket vibrator provide?

The Rocket vibrator includes thermal protection for the stator, progressive start technology to avoid current surges, IP67 rain and dust protection, and safety systems that protect against electric overload, overheating, short circuit, and leakage current.

Is the Rocket high frequency vibrator maintenance free?

Yes, the Rocket vibrator is designed to be maintenance free because of its integrated electronic converter and durable internal components, which reduces the need for regular servicing.

Why is high frequency vibration used in concrete compaction?

High frequency vibration helps remove air bubbles from freshly poured concrete and improves concrete density and strength. It ensures better compaction, resulting in stronger and more durable concrete structures.

Where is the High Frequency Concrete Vibrator Rocket used?

The Rocket high frequency concrete vibrator is widely used in construction projects such as columns, beams, slabs, foundations, bridges, and precast concrete structures to ensure proper concrete compaction.

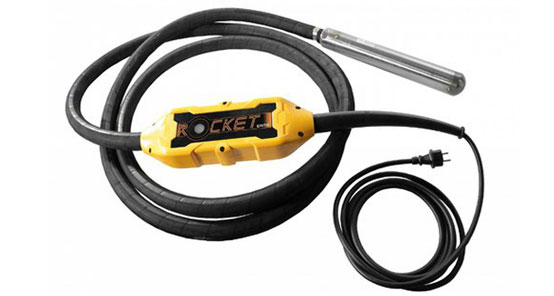

High Frequency Concrete Vibrator Rocket in Pune | Saluja Construction Equipment and Scaffolding Private Limited

Specifications

ROCKET is a reference technique that handles a wide range of operations. This high-frequency immersion vibrator with integrated transducer is designed to meet advanced engineering developments. The equipment is efficient and compact and Made in Spain. ROCKET is a compact and efficient equipment in which an electronic converter is connected to a high-frequency vibrator. ROCKET provides the same benefits as the AFP series, but without the need for a separate generator / transmitter.

Capacity 230 V.
Weight 3.4 KG.
Diameter 38, 50, 58.
Size 5 Meter.
Frequency 200 Hz.
Automation Grade Automatic.
Thermal protection of the stator.
For high performance, oil is used as a lubricant - Reinforced vibrator head.
Maintenance free.
Progressive start to prevent the passage of strong current through poker, avoiding damage.
IP 67 Rain and Dust proof.
PRCD System - Optional.

Emergency shutdown Protected against electric shock Protection against: Electrical overload. Overheating Short circuit leakage current

Thanks to the electronic converter system, Rocket does not have parts that will wear out and require replacement.

Clean, sleek and ergonomic design. High resistance housing to protect the electronics inside from shock.
