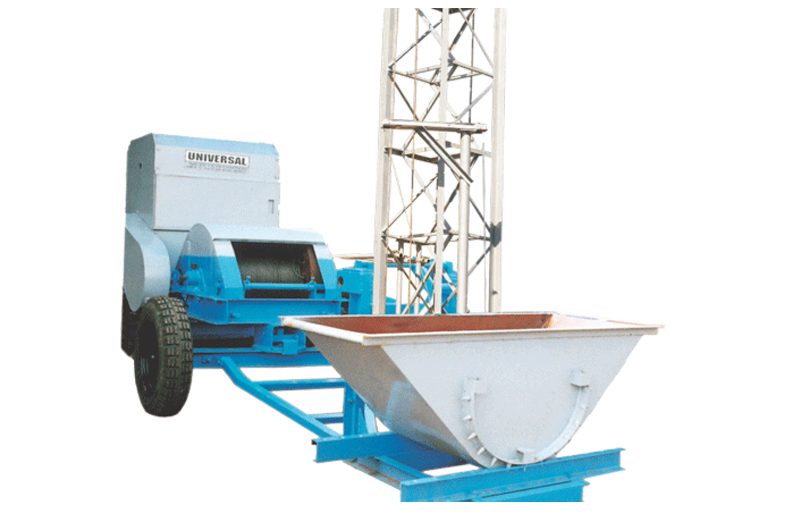

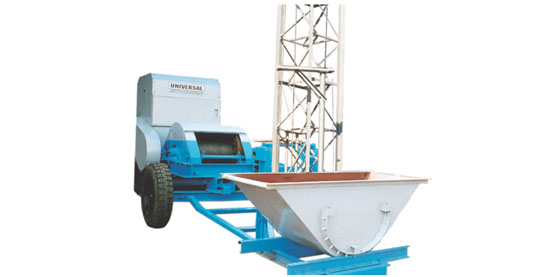

Tower Hoist / Lift / Winch

Details & Specifications

This is the most essential arrangement for placing slab concrete for multistoried buildings.It consists of a fraction winch driven ny diesel engine.The pulley placed on the top of the tower engages bucket by means of wire rope.By engaging friction rollers the drum rotates,which in turn provides motion to wire rope.The tower consists of modular angle frames that can be joined to provide suitable height.

• Power: 12 H.P.Diesel Engine Or 15 H P Elect.Motor.
• Gross Capacity: 600Kg.
• Max.Height: 200ft.
• Speed: 33 Meters/Min.
• Coloumn: 50 X 50 X 5mm angle.
• Skip Unit: 0.3 Cu.mt. With safely lock.
