Question 1

What is a Slum Cone?

Accepted Answer

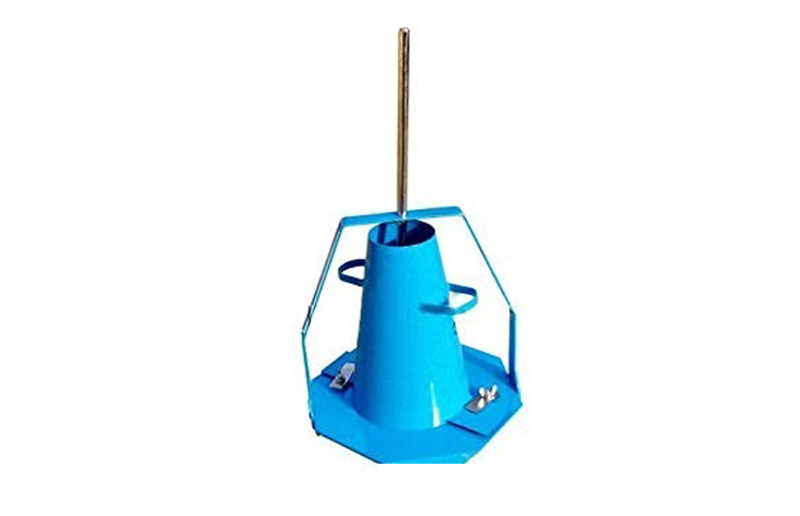

A Slum Cone (more commonly called a slump cone or slump test mould) is a frustum‑shaped mould used in concrete testing to measure the consistency and workability of freshly mixed concrete before placement. It is a key tool in quality control to ensure concrete meets project requirements. :contentReference[oaicite:0]{index=0}

Question 2

What is the purpose of using a Slum Cone?

Accepted Answer

The primary purpose of a slump cone is to determine the **workability or consistency of fresh concrete**, which indicates how easily the concrete can be placed and compacted. Higher slump values typically indicate more workable mixes. :contentReference[oaicite:1]{index=1}

Question 3

How is the slump measured using a Slum Cone?

Accepted Answer

In a slump test, the slump cone is filled with fresh concrete in layers, each layer being tamped with a rod. The cone is then lifted vertically, and the **difference in height between the original cone and the slumped concrete** is measured to determine the slump. :contentReference[oaicite:2]{index=2}

Question 4

What are the standard dimensions of a slump cone?

Accepted Answer

A standard slump cone for concrete testing has typical internal dimensions of **about 300 mm height, 200 mm bottom diameter and 100 mm top diameter**. These dimensions conform to common testing standards and ensure consistency in test results. :contentReference[oaicite:3]{index=3}

Question 5

Where is a Slum Cone used?

Accepted Answer

Slump cones are used on **construction sites, quality control laboratories, ready mixed concrete plants, and infrastructure projects** to verify that concrete batches have the correct workability before placing, which helps reduce issues like poor compaction or segregation. :contentReference[oaicite:4]{index=4}

Question 6

Is a Slum Cone used to check concrete density?

Accepted Answer

Although the product page from Saluja Construction Equipment and Scaffolding Private Limited briefly states ‘used to check the density of concrete’, the slump cone is primarily used to assess **workability/consistency** of fresh concrete. Concrete density tests are performed using different apparatuses (e.g., density cubes, nuclear gauges). :contentReference[oaicite:5]{index=5}

Question 7

What additional equipment is typically used with a slump cone?

Accepted Answer

In addition to the slump cone itself, a slump test generally uses a **tamping rod** and **base plate** to ensure proper filling, compaction and stable positioning of the cone during the test. :contentReference[oaicite:6]{index=6}

Question 8

Where can I get more details or make an enquiry about the Slum Cone?

Accepted Answer

For full product specifications, pricing, availability, and enquiries about the Slum Cone from Saluja Construction Equipment and Scaffolding Private Limited, you can contact them through the contact page on their website or use the enquiry form on the product page. :contentReference[oaicite:7]{index=7}
