What is a Sand Screening Machine?

A Sand Screening Machine is a mechanical device used in construction to separate and classify sand by particle size, remove stones or debris, and produce clean, graded sand suitable for concrete, plastering, or other building applications. It uses vibration or a screening mechanism to filter out oversized particles. :contentReference[oaicite:1]{index=1}

Why is sand screening important in construction?

Screening sand removes dust, stones, and unwanted large particles, ensuring that the sand used in concrete and plaster mixes is uniform and high quality. This improves workability, strength, and durability of construction materials. :contentReference[oaicite:2]{index=2}

How does a Sand Screening Machine work?

A sand screening machine typically employs a vibrating mesh or screen surface driven by an electric motor that shakes and filters the material. Fine particles pass through the screen while larger unwanted particles are discharged separately, resulting in clean, graded sand. :contentReference[oaicite:3]{index=3}

What types of sand can be screened with this machine?

Sand screening machines can handle a range of sand types including river sand, construction sand, machine-made sand, and other granular materials needing grading or impurity removal before mixing into concrete or mortar. :contentReference[oaicite:4]{index=4}

What are the key benefits of using a Sand Screening Machine?

Key benefits include increased screening efficiency, reduced manual labor, improved sand quality with uniform particle size, higher productivity, and better consistency in construction mixes. :contentReference[oaicite:5]{index=5}

Where is a Sand Screening Machine typically used?

Sand screening machines are commonly used on construction sites, in concrete batching plants, masonry yard operations, and materials handling facilities where sand needs to be cleaned and classified before use. :contentReference[oaicite:6]{index=6}

Can the screen mesh size be changed?

Yes, many sand screening machines allow the screen mesh to be changed or customized to obtain the desired particle size distribution according to specific construction requirements. :contentReference[oaicite:7]{index=7}

Where can I get more information or make an enquiry about this product?

For full product specifications, pricing, and availability of the Sand Screening Machine, you can contact Saluja Engineers through their website contact page or request a product brochure. (Add your Saluja Engineers contact URL here)

Sand Screening Machine in Pune | Construction Equipment | Saluja Construction Equipment and Scaffolding Private Limited

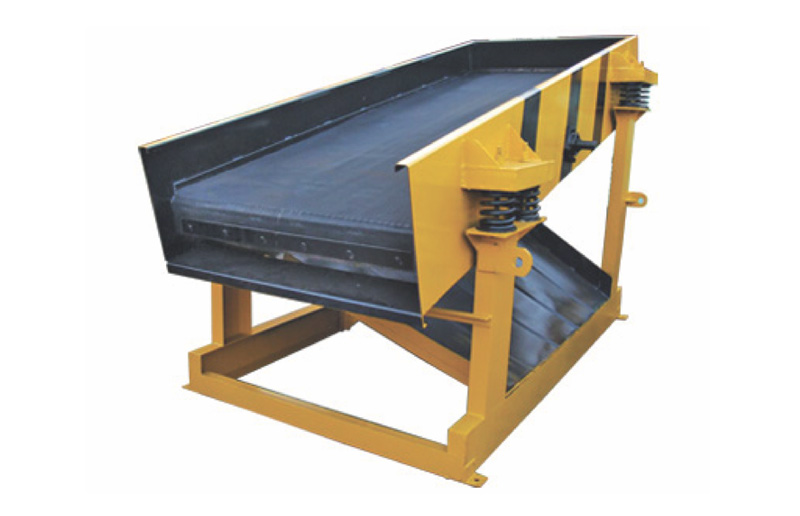

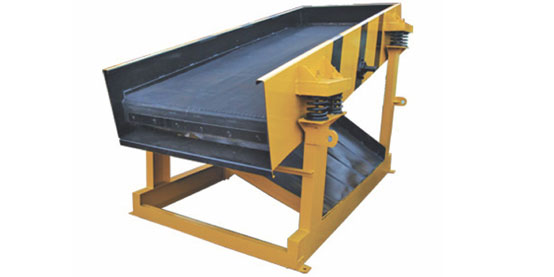

Vibratory Sand screening machine - Specifications

Our precision engineered array of power sand screening machine is designed in compliance with international quality standards. Fabricated using optimum quality grades of raw material the power sand screening machines has a capacity of 4m3 /hrs. Light in weight our machine is widely appreciated for effective sand screening.

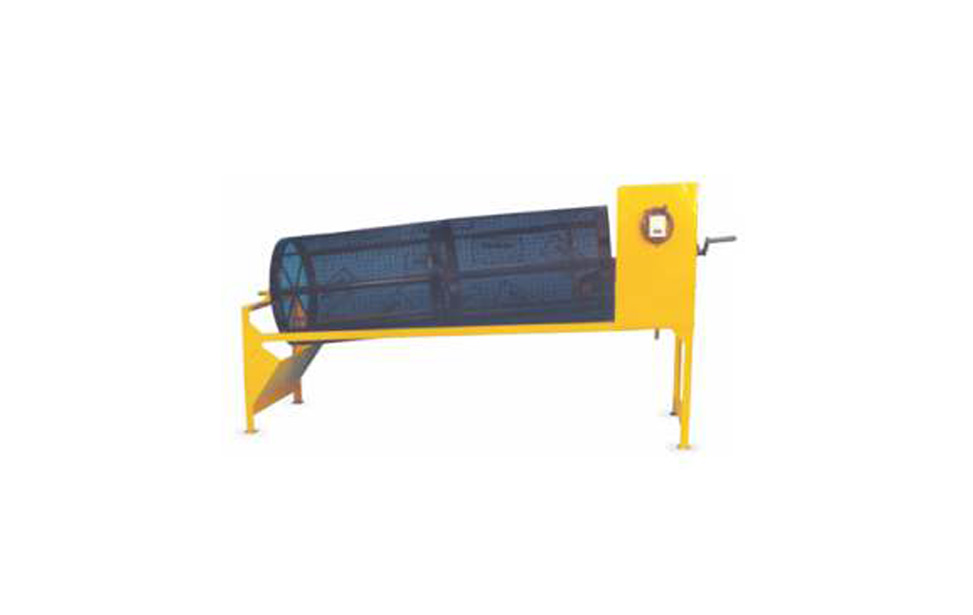

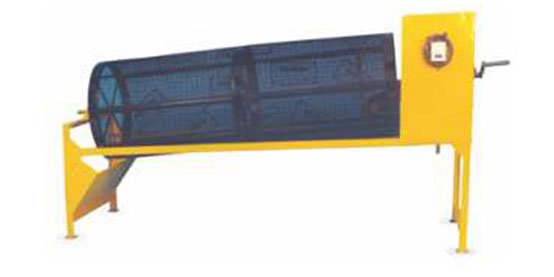

Rotary Sand screening machine - Specifications

Our precision engineered array of manual sand screening machine is designed in compliance with international quality standards. Fabricated using optimum quality grades of raw material the power sand screening machines has a capacity of 2m3 / hrs. Light in weight our machine is widely appreciated for effective sand screening.

Specifications of our array are enlisted below

Specifications	POWER	MANUAL
Capacity	4m3 /hrs.	2m3 / hrs.
Size	2375-Lx765-Wx1390-H	2300-Lx600-Wx1500-H
Screen	6 mesh / 8 mesh	6 mesh / 8 mesh
Mesh	3" weld mesh	1" weld mesh
Drum dia	600 mm.	450 mm
Drive	0.5 HP single phase motor	-
Gear Box	20:1 ratio warm gear box	-
