Sand Screening Machine

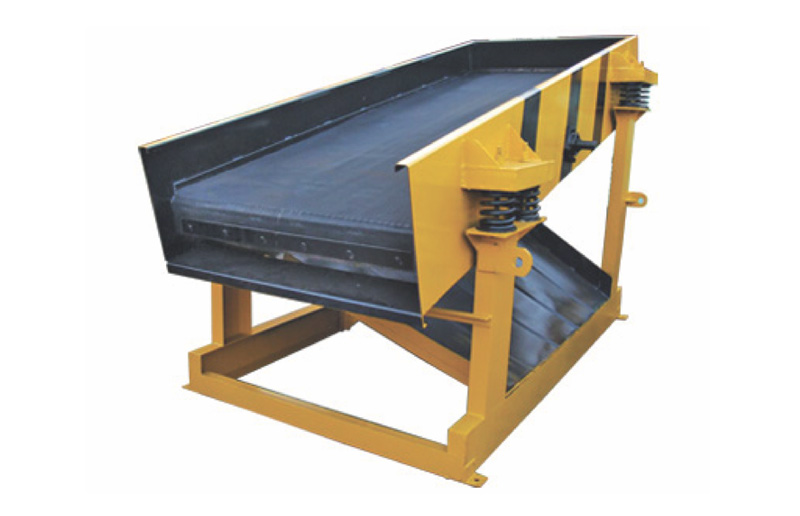

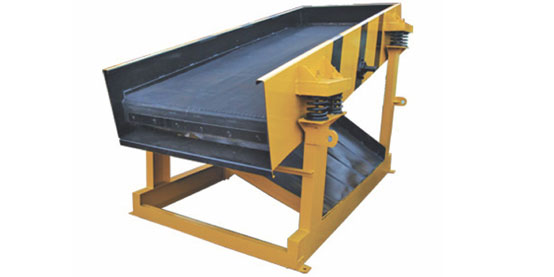

Vibratory Sand screening machine
specifications :
Our precision engineered array of power sand screening machine is designed in compliance with international quality standards. Fabricated using optimum quality grades of raw material the power sand screening machines has a capacity of 4m3 /hrs. Light in weight our machine is widely appreciated for effective sand screening.

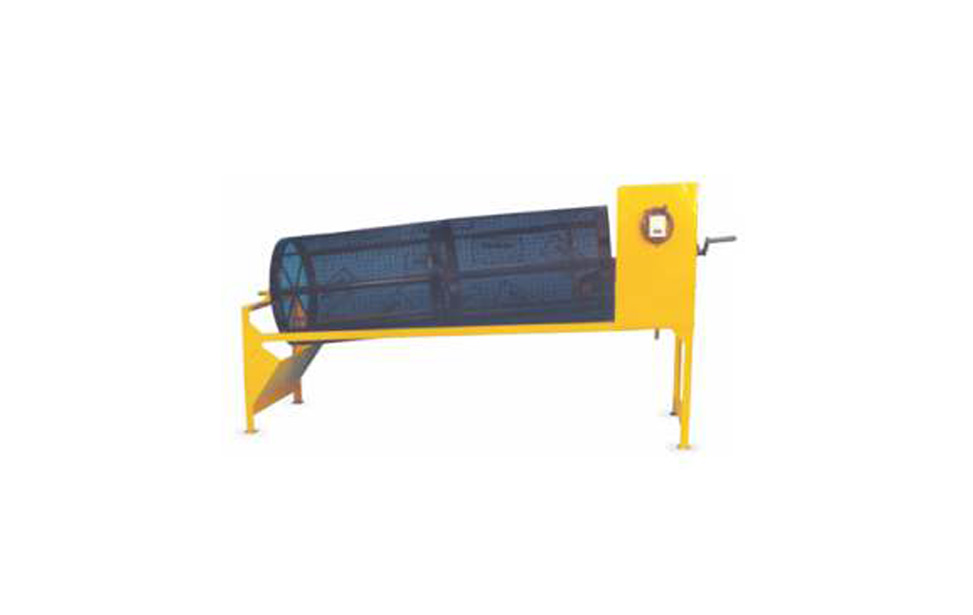

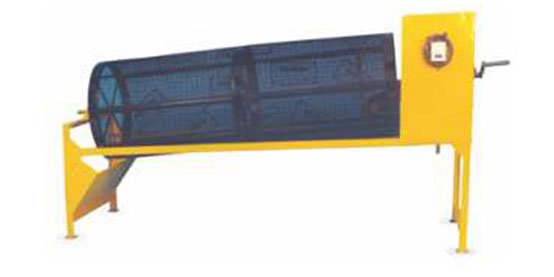

Rotary Sand screening machine
specifications :
Our precision engineered array of manual sand screening machine is designed in compliance with international quality standards. Fabricated using optimum quality grades of raw material the power sand screening machines has a capacity of 2m3 / hrs. Light in weight our machine is widely appreciated for effective sand screening.
Specifications of our array are enlisted below :
| Specifications | POWER | MANUAL |
| Capacity | 4m3 /hrs. | 2m3 / hrs. |
| Size | 2375-Lx765-Wx1390-H | 2300-Lx600-Wx1500-H |
| Screen | 6 mesh / 8 mesh | 6 mesh / 8 mesh |
| Mesh | 3" weld mesh | 1" weld mesh |
| Drum dia | 600 mm. | 450 mm |
| Drive | 0.5 HP single phase motor | - |
| Gear Box | 20:1 ratio warm gear box | - |
